DETASULTRA DES L4 DIVISIBLE FRAME FOR SHARE SEARCH 1731010004
10.60
Tax excluded
2 - 7 days
- Material : pp+GF
- inflammability : self-extinguislable according to UL94-V0
- temperature : -40 ° C ... +155 ° C (static)
- Properties : Halogenless, Silicone without silicone
- Professional benefits ...You will need to validate your professional account. Just get in touch with us. It's quick and easy
- Terms of delivery - Economic delivery charges
- Advice by chat, email or phone

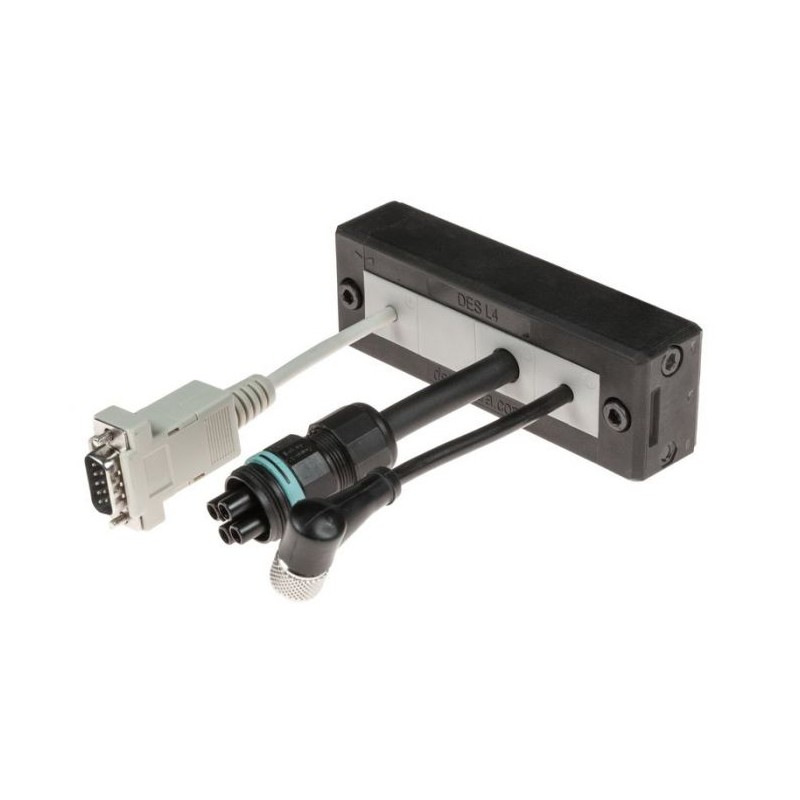

The DES divisible cable duct allows the passage of cables with or without connectors with a diameter of 2 to 35 mm thanks to the different cable duct joints available. The side closure of the frame provides anti-traction and water protection.
The opening eyelets can be positioned freely in the frame. IP66 or NEMA 4X protection can be achieved with any combination of grommets (single, double, quad, breakaway, large).
The overmolded seal and the completely self-extinguishing V0 nature of the system make the DES series a unique product.
-
The set of 4 AISI304 fixing screws with black Dacromet finish (cod. 1731991020) is available on request.
-
The DES 24 FT version with threaded inserts (cod. 1731410024) is available on request.
-
The ATEX version is available on request.
1731010004
249 Items
Data sheet
- Operating temperatures
- -40C° to 155C°
- Protection indices
- I 10
IP 66
NO 12, 4X
UL12, 4X - Maximum opening
- 86 x 18mm
- Standards
- EN 62444
Ecolab
HL3 EN45545-2
Lloyd's register marine
ROHS
UL/UR
UV Iso 4892-2A - Matter
- PP +GF
- Fire resistance
- UL94-V0
- Length
- 120 mm
- Cutting length
- 86 mm
- Width
- 41 mm
- Cutting width
- 18 mm
- Joint size
- Petit
- Type of seal
- SPP
SPP F
SPP K
SPP M
SPP VENT
Specific References
