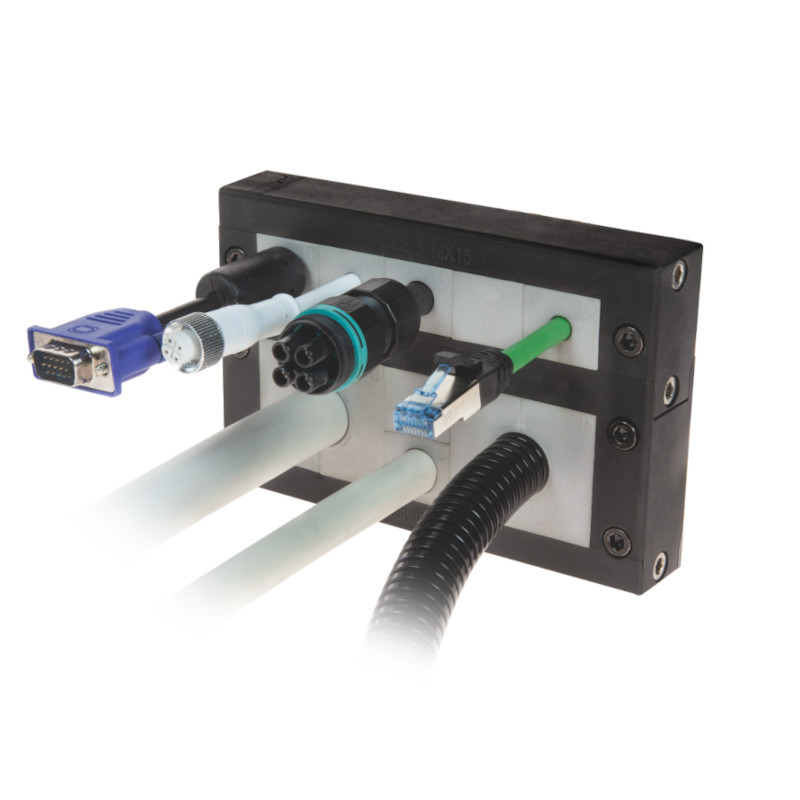

Detasultra DES 24MX15 Divisible frame for split joints 1731010215
16.90
Tax excluded
2 - 7 days
Multiple configurations with small and large cable grommets
AISI304 stainless steel closing screw
IP54 protection
Holding the following cable. EN 62444
Mechanical resistance IK10
External seal included in the supply
Version with threaded inserts on request
- Professional benefits ...You will need to validate your professional account. Just get in touch with us. It's quick and easy
- Terms of delivery - Economic delivery charges
- Advice by chat, email or phone
The divisible cable grommets of the DES 24MX15 series allow the passage of up to 60 cables with and without connectors with a diameter of up to 17 mm or up to 2 cables with a diameter of 18 to 35 mm and 28 cables from 2 to 17 mm, thanks to the different cable grommets available.
The frame closes with three side screws on the right side.
1731010215
9 Items
Data sheet
- Colors
- Black
- Operating temperatures
- -40C° to 155C°
- Protection indices
- IP 54
NO 12 - Standards
- Ecolab
HL3 EN45545-2
Lloyd's register marine
ROHS
UL/UR
UV Iso 4892-2A - Mechanical resistance
- IK10
- Matter
- PP +GF
- Fire resistance
- UL94-V0
- Length
- 146 mm
- Cutting length
- 114 mm
- Width
- 95 mm
- Cutting width
- 70 mm
- Joint size
- Grand
Petit - Type of seal
- SPG
SPG K
SPH M
SPP
SPP F
SPP K
SPP M
SPP VENT
Specific References
