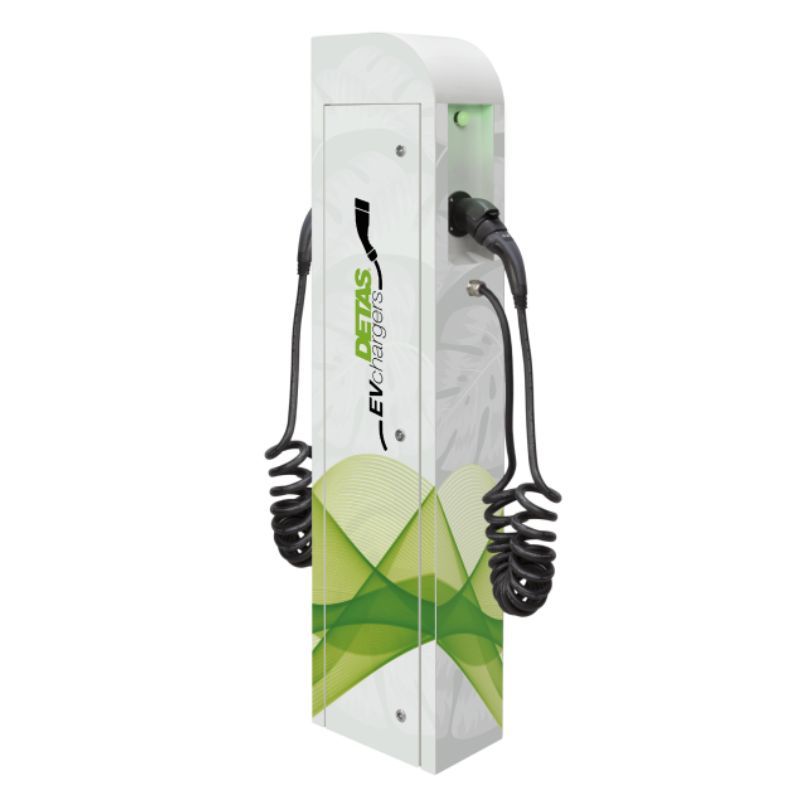

    Detas single-phase charging station 2x7.4kW Apache T2C 40345
    Detas single-phase charging station 2x7.4kW Apache T2C 40345

    Detas single-phase charging station 2x7.4kW Apache T2C 40345

    Review (0)
    4,060.00
    Tax excluded
    When ordering, see the delivery time under the price.

    Painted stainless steel housing with customizable graphics
    Maximum power 2x22 kW
    Fully manageable with mobile app
    OTA updates
    Multiple color status LEDs

    Quantity :
    No Product available
    • Professional benefits ...Professional benefits ...You will need to validate your professional account. Just get in touch with us. It's quick and easy
    • Terms of delivery - Economic delivery chargesTerms of delivery - Economic delivery charges
    • Advice by chat, email or phoneAdvice by chat, email or phone

    The Apache column can be configured with spiral cables or blanked sockets up to a maximum of 2x22kW. The standard version is produced with type 2 cables or sockets.

    Depending on the customer's needs, different models can be supplied, either in plug&charge version or with control electronics.

    The high quality materials guarantee durability and resistance to the most aggressive environments. The large front panel lends itself to graphic customization with the customer's brand.

    A column equipped with the OCPP 1.6 control is available on request.


    The free EVtrip application provides a considerable advantage in using DETAS EVCharger charging stations.
    It allows, not only, the configuration of the EVcharger range terminals (except SIRIUS).
    It also offers the possibility of viewing in real time the energy consumed in an instant; it provides quantified reports on consumption. Finally, if you wish, it also allows users of your terminal to pay you for their consumption.

    DETASULTRA
    40345

    Data sheet

    Operating temperatures
    -25C° to 45C°
    Protection indices
    IP 54
    Tension
    230 AC
    Login
    IoT
    Wifi
    Payment Management
    On demand
    Max power.
    2 x 7.4 kW
    Charging system
    Mode 3 sec IEC 61851
    Max intensity
    64A
    Connection
    Single phase
    Exit
    2 x 5m T2 cables
    Functioning
    Via Application EVTRIP
    Power adjustment
    Via Application EVTRIP
    Terminal type
    Station
    Electrical protection
    Integrated
    Type of electrical protection
    Disjoncteur différentiel 1P+N, 30mA, 40A, 6KA, Courbe C
    Charging with surplus photovoltaic
    non
    Power modulation according to domestic consumption
    non

    Specific References
